Improve Quality

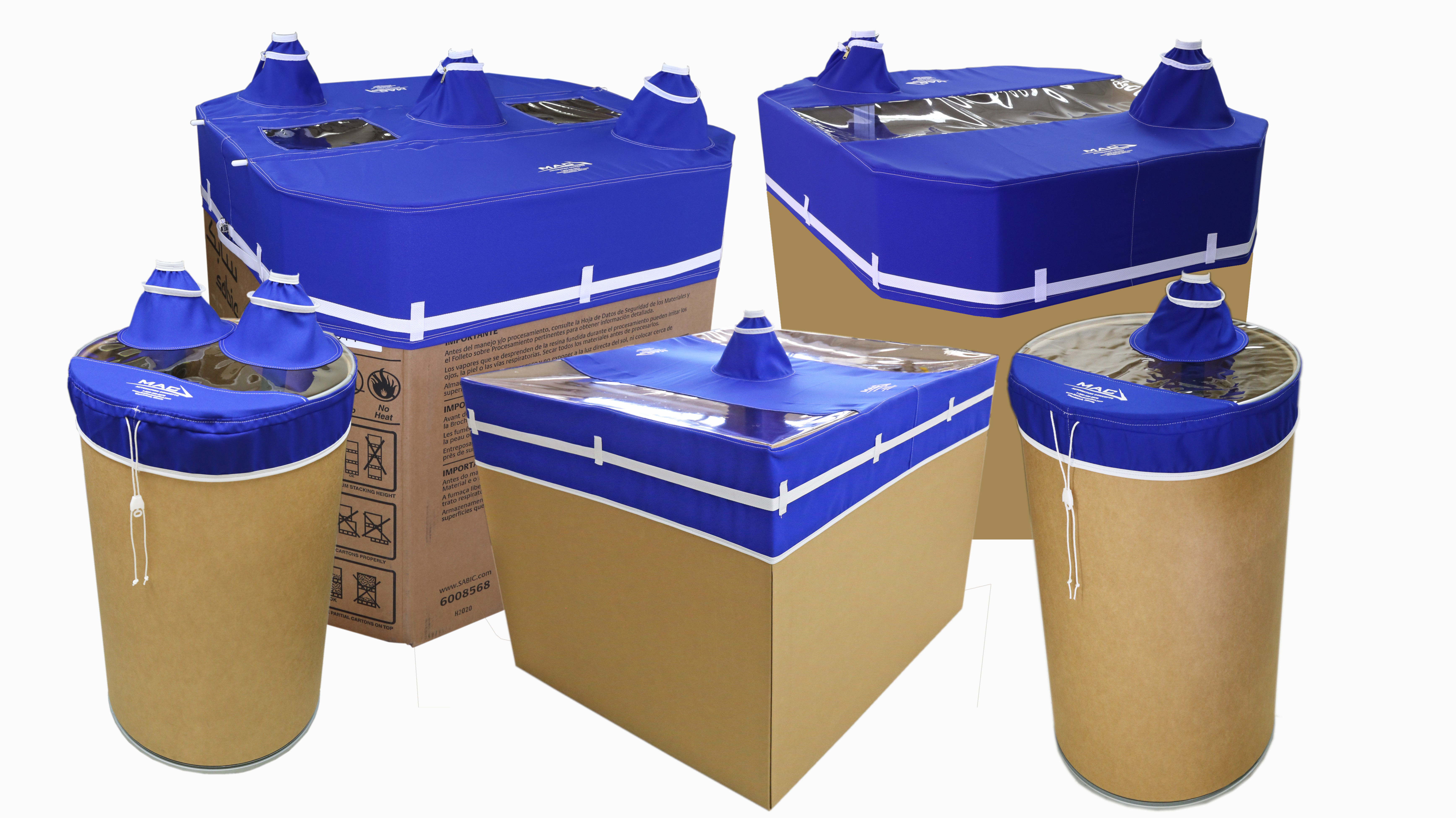

Drum and Gaylord Covers improve the quality of molded parts by preventing contamination of in process material. They provide easy access and the ability to make quick visual level checks. Our covers reduce mess and housekeeping labor associated with transferring of material from central loaders and grinders.
Options:
- 1 or 2 Ports
- Custom Shapes (Gaylords)
- Custom Sizes
- Custom Screen Names or Logos
Drum Covers
Our drum covers fit 22" & 24" diameter drums. The access port accepts a 2" to 2.75" diameter vacuum wand. The port features an elastic band for a tight seal and a zipper to close the opening when not in use. It includes a tie cord to insure a snug fit and clear vinyl window for quick visual level check.
Gaylord Covers
The negative pressure standard cover features two access ports sized to accept a 2" to 2.75" diameter vacuum wand. The ports are located in opposite corners of the cover so that operators can reposition the vacuum wand as material shifts in the Gaylord. The ports include an elastic band for a tight seal and a zipper to close one or both openings when not in use.
The single port (positive pressure) cover has a center port. The port size is specified by the customer within a range of 2" to 20" diameter. This cover is designed to reduce the mess associated with pneumatic loading of material into a Gaylord. Specify diameter of port when ordering.
All covers have an elastic band around the skirt with belt and buckle, to hold the cover more securely in place.
If more custom features are required, please enclose a drawing. For silk screen items, a copy of printed name and logo must be provided.
Octagon Gaylord Covers
Features
- Two access ports 2″ in diameter and 8″ tall (standard)
- Breathable filter panel
- Two vinyl windows allow for quick visual level checks
- Securely holding the 10 inch long skirt in place is an elastic band and belt with buckle
- One center 8″ tall (standard) access port
- Breathable filter panel
- Two vinyl windows allow for quick visual level checks
- Securely holding the 10 inch long skirt in place is an elastic band and belt with buckle
Drum Covers
Model DN22
1 Port Drum Cover
- Ports: 1
- Fits: 22" diameter drums
- Port Height: 8"
- Vacuum Diameter: 2" - 2.75"
Model DP22
2 Port Drum Cover
- Ports: 2
- Fits: 22" diameter drums
- Port Height: 8"
- Vacuum Diameter: 2" - 2.75"
Model DN24
1 Port Drum Cover
- Ports: 2
- Fits: 24" diameter drums
- Port Height: 8"
- Vacuum Diameter: 2" - 2.75"
Model DP24
2 Port Drum Cover
- Ports: 2
- Fits: 24" diameter drums
- Port Height: 8"
- Vacuum Diameter: 2" - 2.75"
Gaylord Covers
Model GP3442
1 Port Gaylord Cover (positive pressure)
- Ports: 1
- Fits: 34" x 42" to 35" x 43" Gaylords
- Port Height: 8"
- Vacuum Diameter: Customer must specify within a range of 2″ to 20″
Model GP4248
1 Port Gaylord Cover (positive pressure)
- Ports: 1
- Fits: 41" x 47" to 42" x 48" Gaylords
- Port Height: 8"
- Vacuum Diameter: Customer must specify within a range of 2″ to 20″
Model GP4848
1 Port Gaylord Cover (positive pressure)
- Ports: 1
- Fits: 47" x 48" to 48" x 49" Gaylords
- Port Height: 8"
- Vacuum Diameter: Customer must specify within a range of 2″ to 20″
Model GP4852
1 Port Gaylord Cover (positive pressure)
- Ports: 1
- Fits: 48" x 52" to 49" x 53" Gaylords
- Port Height: 8"
- Vacuum Diameter: Customer must specify within a range of 2″ to 20″
Model GN3442
2 Port Gaylord Cover (negative pressure)
- Ports: 2
- Fits: 34" x 42" to 35" x 43" Gaylords
- Port Height: 8"
- Vacuum Diameter: 2" - 2.75"
Model GN4248
2 Port Gaylord Cover (negative pressure)
- Ports: 2
- Fits: 41" x 47" to 42" x 48" Gaylords
- Port Height: 8"
- Vacuum Diameter: 2" - 2.75"
Model GN4848
2 Port Gaylord Cover (negative pressure)
- Ports: 2
- Fits: 47" x 48" to 48" x 49" Gaylords
- Port Height: 8"
- Vacuum Diameter: 2" - 2.75"
Model GN4852
2 Port Gaylord Cover (negative pressure)
- Ports: 2
- Fits: 48" x 52" to 49" x 53" Gaylords
- Port Height: 8"
- Vacuum Diameter: 2" - 2.75"
Model GN4347BLOCT
2 Port Octagon Gaylord Cover (negative pressure)
- Ports: 2
- Fits: 43" x 47" Gaylords
- Port Height: 8"
- Vacuum Diameter: 2" - 2.75"
Model GP4347BLOCT
1 Port Octagon Gaylord Cover (positive pressure)
- Ports: 1
- Fits: 43" x 47" Gaylords
- Port Height: 8"
- Vacuum Diameter: Customer must specify within a range of 2″ to 20″
